Zoom Poly Phone E100 and E220 Guide

The Edge E100 and E220 are in nearly all aspects the same phone. The main differences are that the E220 is Bluetooth capable and has additional campus extension buttons (line appearances) to allow users to have more extensions on their phone.

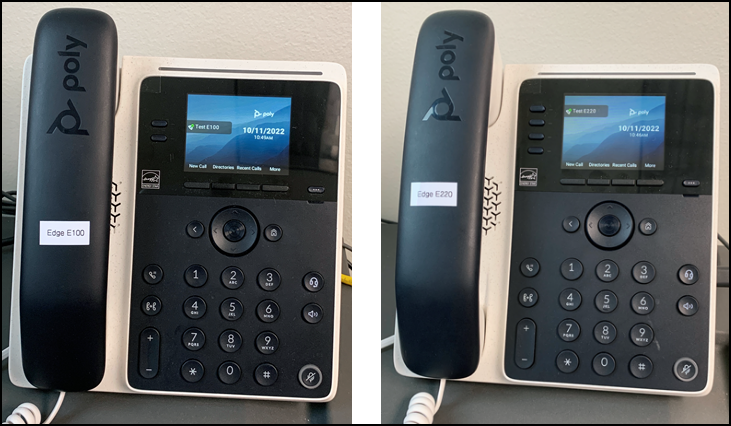

Poly Edge E100 (left) and Edge E220 (right)

Quick Start

Edge E100 Phone Display & Button Overview

Edge E100 display and button diagram

  1. Handset
  2. Speakerphone
  3. Campus extension buttons (line appearances)
  4. Display screen
  5. Soft keys (display above will show what each soft key does)
  6. Back button for display screen navigation
  7. Navigation buttons for display screen navigation (up, down, left, right)
  8. Select button for display screen navigation
  9. Home button for display screen navigation
  10. Hold button
  11. Transfer button
  12. Volume button for call ring and for call volume
  13. Headset button
  14. Speakerphone button
  15. Mute button
  16. Ring and voicemail indicator light

Edge E220 Phone Display & Button Overview

Edge E220 display and button diagram

  1. Handset
  2. Speakerphone
  3. Campus extension buttons (line appearances) - note there are four campus extension buttons on this model
  4. Display screen
  5. Soft keys (display above will show what each soft key does)
  6. Back button for display screen navigation
  7. Navigation buttons for display screen navigation (up, down, left, right)
  8. Select button for display screen navigation
  9. Home button for display screen navigation
  10. Hold button
  11. Transfer button
  12. Volume button for call ring and for call volume
  13. Headset button
  14. Speakerphone button
  15. Mute button
  16. Ring and voicemail indicator light

Connect a headset to your desk phone

Wired headset

Edge E100 desk phone USB-C headset port

digital headset attached

Bluetooth headset (E220 only)

Make sure that your Bluetooth device is on and discoverable before starting this process!

1. Press the Home button on your E220 desk phone.

2. Scroll down to find Bluetooth. Then, press the Select button.

Bluetooth in E220 Settings menu

3. If Bluetooth is off, press the Select softkey.

Select Bluetooth

4. Use the navigation keys to highlight On. Then, press the Select softkey. A message will pop up saying that Bluetooth is being turned on.

Turning Bluetooth on message

5. Press the Back softkey to return to the Bluetooth menu after Bluetooth has been turned on.

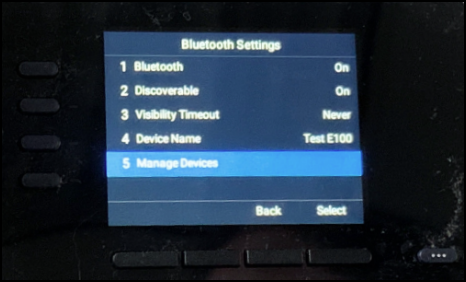

Back to Bluetooth Settings

6. Press 5 to Manage Devices.

Blueooth Settings screen

7. Press the Scan softkey to search for devices.

Scan for devices screen

8. When your headset shows up on the available devices list, scroll to it then press Pair.

It may take some time for the phone to locate devices.

You can press the Information softkey to learn more about the selected device. Pressing the Refresh softkey will start a new device search. To return to the main Bluetooth menu, press the Back softkey.

Available Devices screen

9. If prompted, verify that the code shown on your phone display matches your headset. Press the Accept softkey to confirm.

Accept Pairing screen

Make a call

Dialing "9" for an off-campus phone number is no longer necessary. However, you do need to enter Country Code e.g is the Mexico Code (52)+area code+phone number (e.g., 52-714-555-1212) when calling out of country and within the country you need to add the area code only (e.g., 763-123-6789)

Make a call using the handset

  1. Pick up the handset.
  2. Enter the phone number you want to call.
  3. Press the Send soft key.

Make a call using speakerphone

Option 1:

  1. Enter the phone number you want to call.
  2. Press the Dial soft key.

Option 2:

  1. Press the Call soft key.
  2. Enter the phone number you want to call.
  3. Press the Send soft key.

Option 3:

  1. Press the speakerphone button.
  2. Enter the phone number you want to call.
  3. Press the Send soft key.

Make a call using headset

When you have a headset connected, calls will default to your headset.

Option 1:

  1. Enter the phone number you want to call.
  2. Press the Dial soft key.

Option 2:

  1. Press the New Call soft key.
  2. Enter the phone number you want to call.
  3. Press the Send soft key.

Option 3:

  1. Press the headset button.
  2. Enter the phone number you want to call.
  3. Press the Send soft key.

Answer a call and hang up

Note that you can "mix and match" with these options. For example you can pick up the handset to answer a call but press the End Call soft key to hang up.

Answer with handset

  1. Pick up the handset to answer the call.
  2. To hang up, put the handset back in the cradle.

Answer with speakerphone

Option 1:

  1. Press the speakerphone button to answer the call.
  2. To hang up, press the speakerphone button again.

Option 2:

  1. Press the Answer soft key to answer the call.
  2. To hang up, press the End Call soft key.

Adjust ring volume and call volume

If you are on a call with handset, these buttons will adjust the call volume for the handset.

If you are on a call with speakerphone , these buttons will adjust the call volume for the Speakerphone.

Otherwise, these buttons will adjust the ring volume.

volume buttons

Transfer a call

transfer button and transfer soft key

Transfer directly to a campus extension (blind transfer)

  1. Press the transfer button to the left of the number keys. Or press the Transfer soft key.
  2. Enter the extension you want to transfer the call to.
  3. Press the Send soft key to complete the transfer. Or press Cancel to return to the caller.

Announce a call/speak to someone before transferring (warm transfer/consultative)

  1. Press the transfer button to the left of the number keys. Or press the Transfer soft key.
  2. Press the Consultative soft key.
  3. Enter the extension you want to transfer to.
  4. Press the Send soft key to continue the transfer. Or press Cancel to return to the caller.
  5. Stay on the line while the call connects.
    1. If the call is answered, press the Transfer soft key to complete the transfer or the Cancel soft key to cancel the transfer and return to the original caller.
    2. If the call is not answered, press the Cancel soft key to return to the original caller.

Transfer directly to someone's voicemail

  1. Press the More soft key until you see the T2VM soft key.
  2. Press the T2VM soft key.
  3. Enter the extension you want to transfer to.
  4. Press the Enter soft key. The caller has been transferred to the voicemail of the extension you entered.

Mute a call

Mute allows you to temporarily mute your microphone so the caller cannot hear you. Keep in mind that the caller will just hear dead air; they won't hear any hold music.

mute button

While the call is on mute, the mute button will be red.

  1. To place a call on mute, press the mute button.
  2. To take the call off mute, press the mute button again.

Place a call on hold

hold button

  1. To place a call on hold, press the hold button.
  2. To take the call off hold, press the hold button again or press the Resume soft key.

Call Waiting

Call Waiting alerts a user who is currently on a phone call that there is another incoming call. The user will hear a beep and the display on the phone will show the caller ID of the new incoming call.

When you get a new incoming call:

  • Answer the new incoming call: Press the Answer soft key. Your current call will be placed on hold.
  • Silence the new incoming call: Press the Silence soft key. The new incoming call will continue to flash on your display (and eventually be sent to your voicemail or to the Call Forward/Busy extension you have enabled)
  • Reject the new incoming call: Press the More soft key and then press the Reject soft key. The new incoming call will immediately be sent to your voicemail.

If you do nothing, after a few seconds the display will return to the current call and the new incoming call will be sent to your voicemail or the Call Forward/Busy extension you have enabled.

Additional Features

View Recent and Missed Calls

Missed calls notification and Recent Calls soft key

Use Recent Calls to access your call history, including missed calls. When you have missed calls, you will see a notification at the top left of the display screen.

You don't need to clear your missed calls to remove the missed calls notification on your phone display screen; simply viewing your missed calls is enough to remove the notification.

What do those icons in Recent Calls mean?

Recent Calls legend

Access Recent Calls List

  1. Press the Recent Calls soft key.
  2. Use the up/down navigation buttons to scroll through the list of calls.
  3. By default, you will see all of your call history (answered and missed). Use the up/down navigation buttons to scroll through the list.

View only Missed Calls

  1. Press the Type soft key on the Recent Calls screen.
  2. Then use the down navigation button to select Missed Calls and press the Select soft key.
  3. Press the Back soft key to go back to the Recent Calls screen.
  4. You are now viewing just your missed calls. Use the up/down navigation buttons to scroll through the list.

Clear your call history

  1. Press the More soft key on the Recent Calls screen.
  2. Press the Clear soft key.
  3. Use the up/down navigation buttons to highlight All Calls, Missed Calls, Received Calls, Placed Calls, or Displayed Calls.
  4. Then press the Select soft key to immediately delete the selected type of call history.

Forward your phone to another campus extension

When you enable call forwarding, all calls to your extension will be forwarded to the extension you enter. If the call is not answered, the caller will be sent to your voicemail.

Forward soft key

To enable call forwarding:

  1. Press the More soft key.
  2. Then press the Forward soft key.
  3. Press 1 or the select button to choose Always.
  4. Enter the campus extension that you want to forward your calls to.
  5. Press the Enable soft key.

To disable call forwarding:

  1. Press the More soft key.
  2. Then press the Forward soft key.
  3. Press 1 or the select button to choose Always.
  4. Press the Disable soft key to turn off call forwarding.

Do Not Disturb

Do Not Disturb will silence the ringer on your desk phone when enabled. You will still see calls on the phone's display screen and can still answer them.

Do Not Disturb soft key

  1. To enable Do Not Disturb, press the More soft key.
  2. Then press the DND soft key.
  3. To take your phone off Do Not Disturb, press the DND soft key again.

Conference Calling (3-way calls)

Conference calling allows you to combine multiple calls into a single call. You can have up to 10 callers in a single conference call.

conference soft key

  1. While on a call, press the More soft key.
  2. Then press Conference.
  3. Enter the campus extension or phone number that you want to add to the conference call.
  4. Press the Send soft key.
  5. When the second call is answered, press the More soft key and then press the Conference soft key to connect the calls.
  6. The conference call is now established. You can press More and then Conference again to add more callers to the conference call.

Change the ringtone type

There are several different types of ringtones that you can use to differentiate when your desk phone rings versus when someone else's desk phone rings.

Note that this changes the ringtone for all lines on your desk phone; you are not able to set a different ringtone for each line.

To change your ringtone type:

  • Press the Home button.
  • Select Settings.
  • Select Basic.
  • Select Ring Type.
  • Use the up/down navigation buttons to highlight the ringtone you want to use.
    • Optional: press the Play softkey to hear the ringtone.
  • Press the Select button to set your new ringtone type.

Voicemail

Access your voicemail

  1. Enter *86 and then press the Dial soft key to access  your voicemail.
  2. Enter your PIN number followed by #.
  3. You are now at the voicemail main menu.

How do I know if I have new voicemail messages?

There are several ways you will know you have a new voicemail message:

  • You will see the indicator light flashing red on your desk phone.
  • There will be a message icon on your phone display.
  • When you pick up your phone, the dial tone will play a little faster for a few seconds.
  • You will receive a notification in your email with the message attached.

Listen to your voicemail messages

  1. Dial *86 to access your voicemail.
  2. Enter your PIN number followed by #.
  3. Press 1 to listen to your messages.
  4. The system will tell you how many new and old voicemails you have. It will automatically start playing your newest voicemail first.
  5. While listening to a voicemail, you can:
    1. Press 2 to save the message.
    2. Press 3 to delete the message.
    3. Press 4 to repeat the message.
    4. Press 5 to skip to the next message.
  6. When you reach the end of your messages, the system will disconnect you.

Record a voicemail greeting

  1. Dial *86 to access your voicemail.
  2. Enter your PIN number followed by #.
  3. Press 2 to record a new voicemail greeting.
  4. When prompted, start recording the message. Press * to re-record or press any other key to stop recording.
  5. The system will play back your recording. Press 1 to save this new voicemail greeting or press 2 to re-record.
  6. When you save the new voicemail greeting, you will be taken back to the voicemail main menu.
